產品多媒體展示
Product Multimedia Display 展示新舊設計鉸鏈產品對比 Showcase comparison between new and old designed hinges products

新設計鉸鏈 符合ANSI A156.17規範
New Designed Hinges as per ANSI A156.17 Spec.
Stainless Steel Concealed Electric Wires Hinges and Lock 90°

New designed with 12 teflon wires UL-10362

傳統設計鉸鏈
Old Designed Hinges as per ANSI A156.17 Grade 1
NEW

不鏽鋼隱藏式電線鉸鏈與鎖
New Stainless Steel Concealed Electric Wires Hinges and Lock 12芯鐵氟龍線材 AWG 28 符合 UL-10362 規範 12 Teflon Wires AWG 28 as per UL-10362 Spec. 可與任何門禁系統或電子鎖整合，提升門禁安全等級 It can be integrated with any access control system or electronic lock available in the market, increasing the security level of the access control.

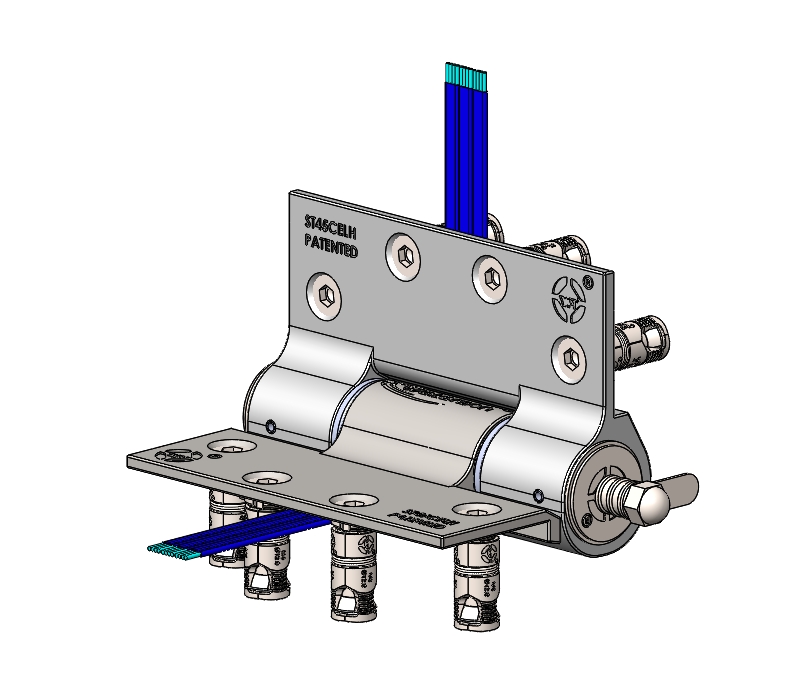

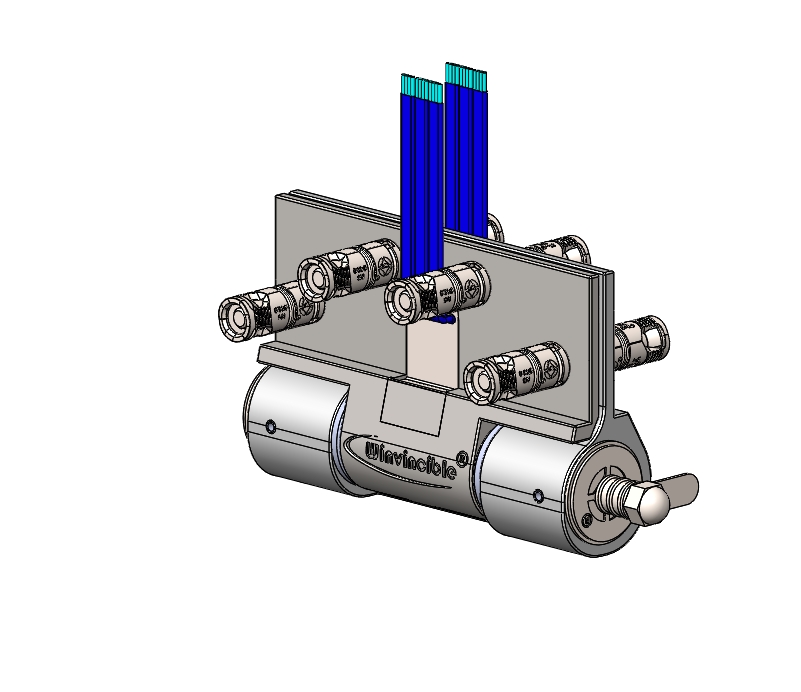

ST45MCELH
ST45MCELH

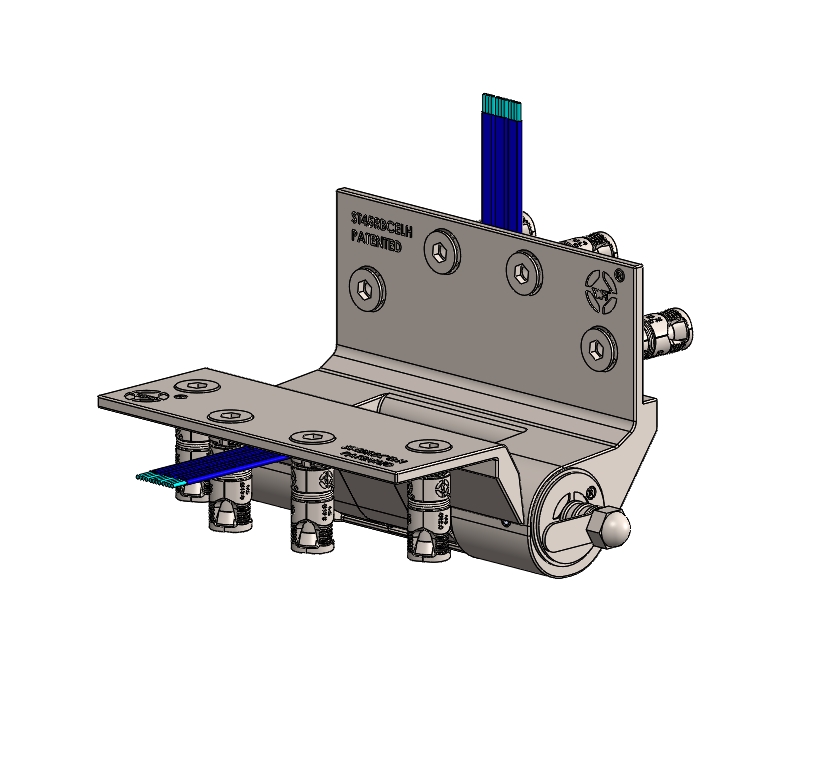

ST45RBMCELH
ST45RBMCELH

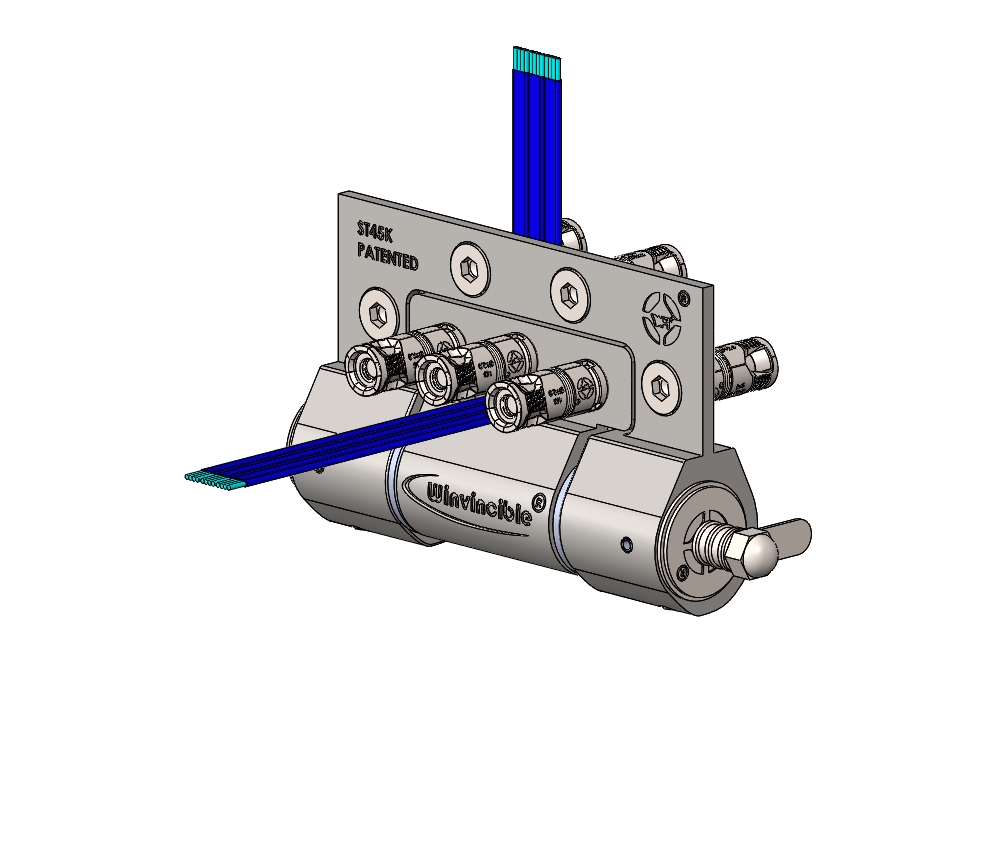

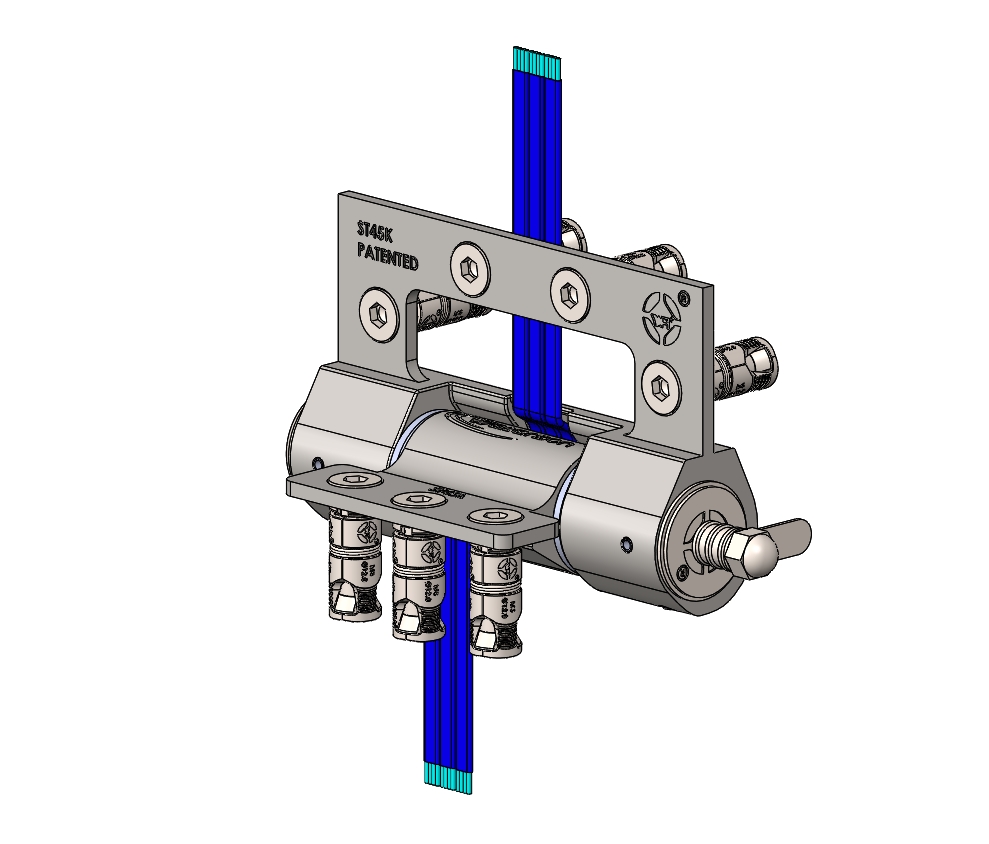

ST45KCELH
ST45KCELH
線材優勢 / Cable Advantages：
耐高溫250℃ High Temperature Resistant 高耐壓600V High Voltage Resistant UL認證標準 UL Certified 12芯多功能 12-Core Multi-function 透明外被 Transparent Jacket 12色識別 12-Color Identification 鐵氟龍材質 Teflon Material
專用線材規格 / Cable Specification：
基本規格：
  • 標準：UL-10362
  • 線規：28AWG x 12芯排線
  • 導體：鍍鎳銅 (7/0.127mm)
  • 絕緣材質：PFA (厚度0.25mm)
  • 外被材質：FEP透明色
  • 線芯顏色：12色區分識別
Cable Specification：
  • Standard: UL-10362
  • Wire Gauge: 28AWG x 12 Cores Flat Cable
  • Conductor: Nickel plated copper (7/0.127mm)
  • Insulation: PFA (Thickness 0.25mm)
  • Jacket: FEP Transparent color
  • Wire Colors: 12 colors identification
電器特性 / Electrical Characteristics：
特性：
  • 額定溫度：250℃ (導體) / 200℃ (外被)
  • 額定電壓：600V (導體) / 300V (外被)
  • 火花試驗：6kV/0.15sec (導體)
  • 線材尺寸：1.55mm±0.05 x 11.5mm±0.5mm
  • 符合UL-758 & 1581規範
Characteristics：
  • Rated Temperature: 250℃ (Conductor) / 200℃ (Jacket)
  • Rated Voltage: 600V (Conductor) / 300V (Jacket)
  • Spark Test: 6kV/0.15sec (Conductor)
  • Cable Size: 1.55mm±0.05 x 11.5mm±0.5mm
  • Complies with UL-758 & 1581 Standards
NEW

不鏽鋼鉸鏈
Stainless Steel Full Mortise Template Hinges as per ANSI A156.17 Spec. are Suitable for Various Door Types: Frame Glass Doors Solid Wood Doors Steek-Wood Doors Entrance Doors Fire Doors Anti-Violent Doors Stainless Steel Doors

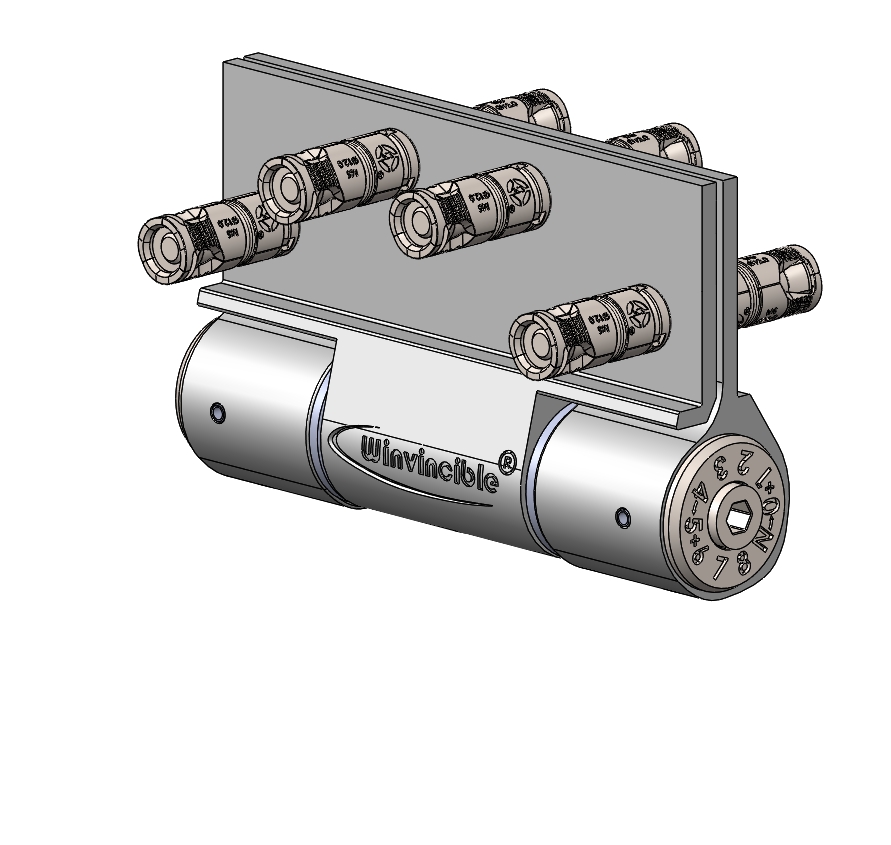

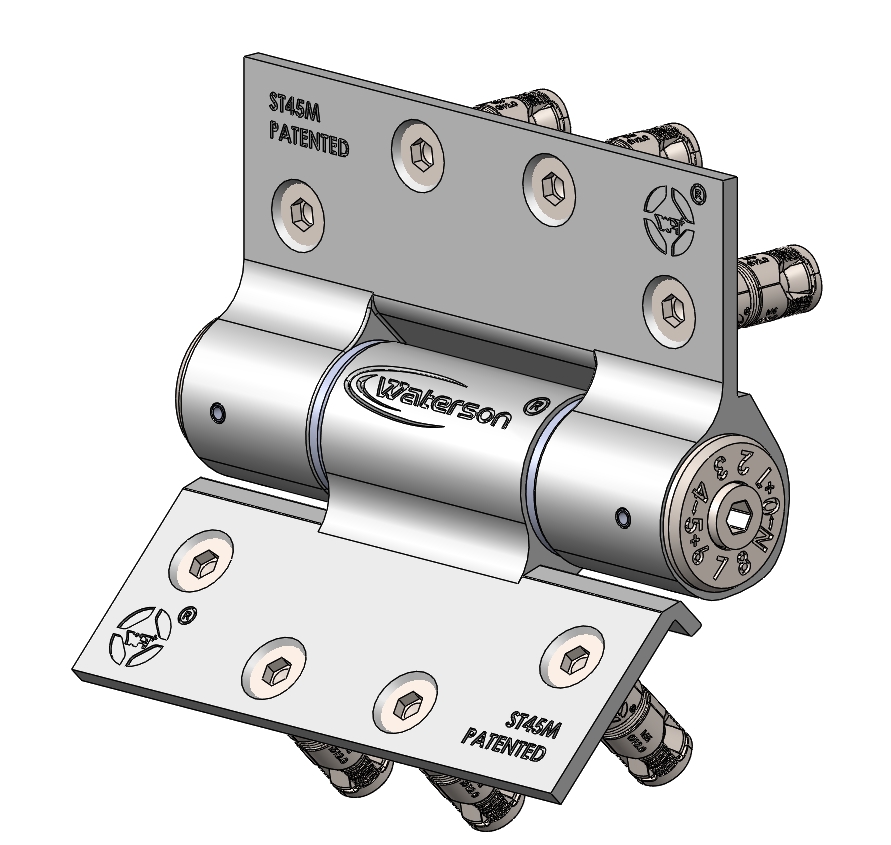

ST45M
ST45M

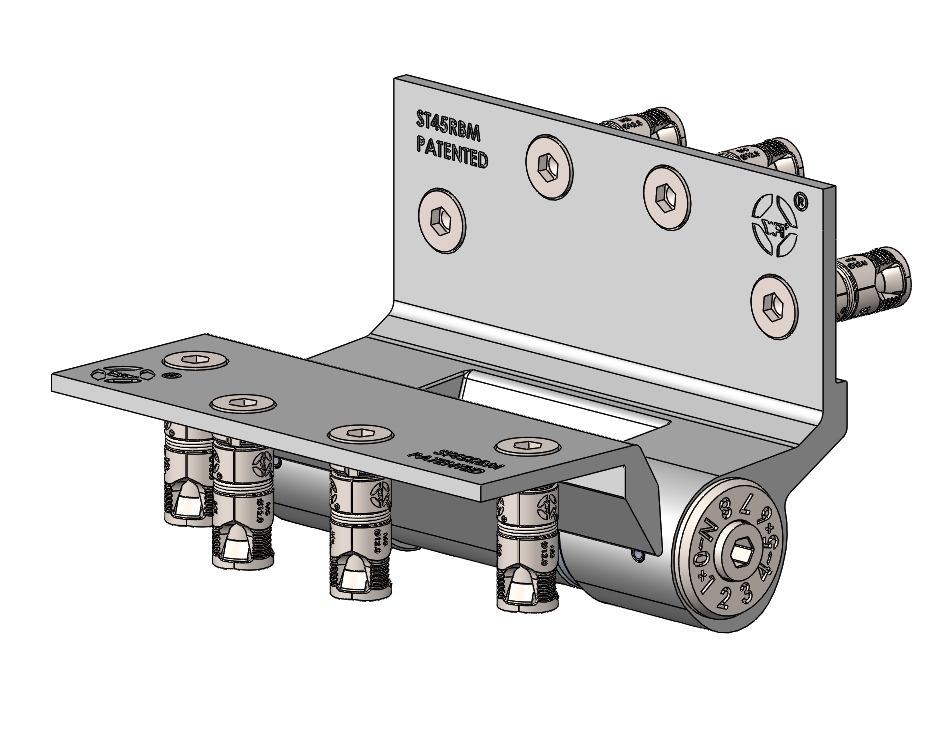

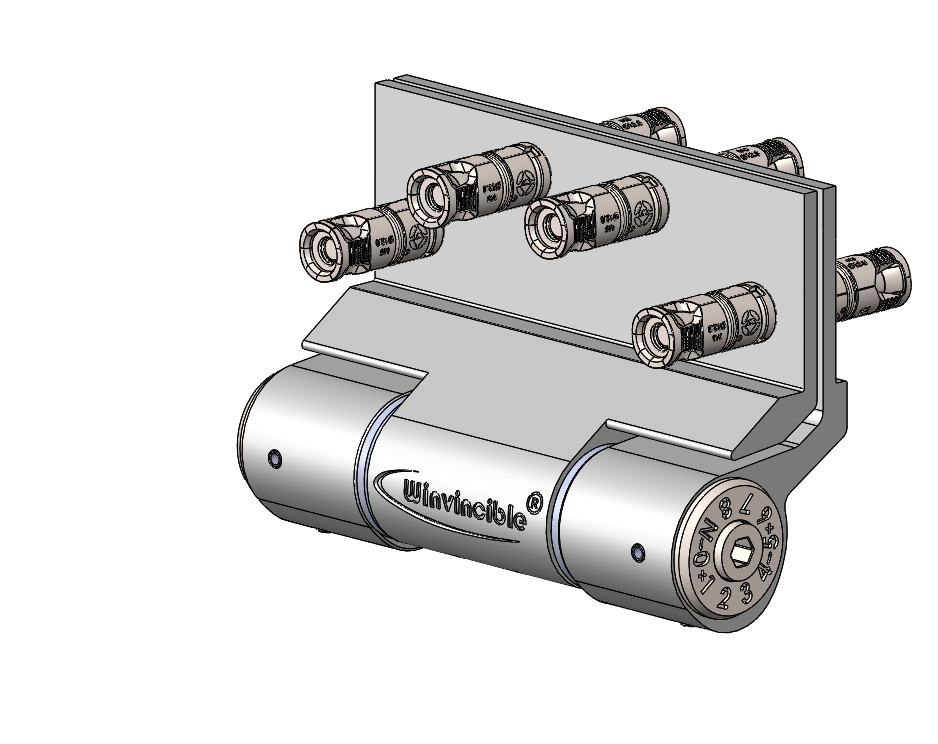

ST45RBM
ST45RBM

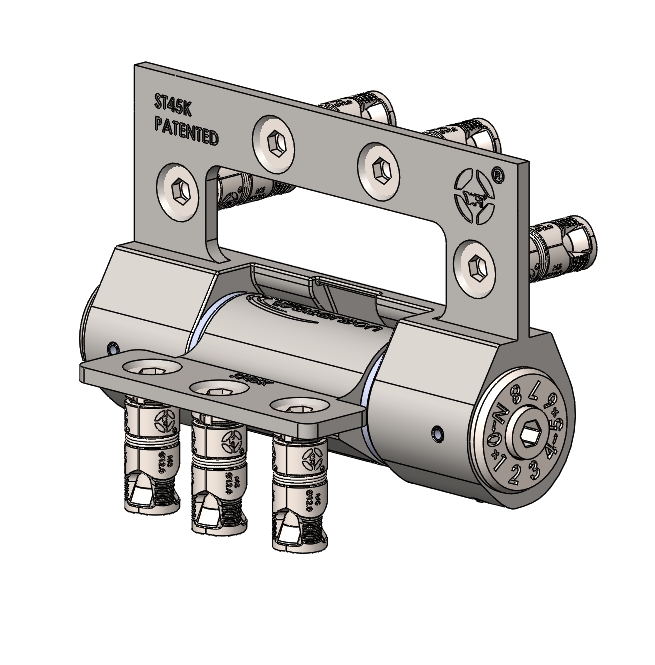

ST45K
ST45K
適用門種 / Suitable for Various Door Types：
玻璃門 Glass Doors 實木門 Solid Wood Doors 鋼木門 Steel-Wood Doors 玄關門 Entrance Doors 防火門 Fire Doors 防暴門 Anti-Violent Doors 不鏽鋼門 Stainless Steel Doors
產品特點 / Product Features：
特點：
  • 可以取代目前市場上傳統的不銹鋼天地鉸鏈、門弓器、油壓地鉸鏈、3D調整器等安裝簡捷快速安全,容易調整及設定
  • 採用專利Expansion Anchor 獨特結構設計取代傳統安裝方法
  • 只要會拿3mm及5mm六角板手都會安裝(不需要專業工程師或技術人員)
  • 可調式關門角度 0度,90度,135度等
  • 發明專利機械與油壓緩衝裝置混合式結構
Features：
  • It can replace traditional stainless steel floor hinges, door closers, hydraulic floor hinges, 3D adjusters, and other products currently available in the market, making installation simple, fast, safe, and easy to adjust and set
  • It uses a patented Expansion Anchor with a unique structural design that replaces traditional installation methods
  • Anyone who can use a 3mm or 5mm hex wrench can install it (there's no need for professional engineers or technicians)
  • Adjustable closing angles: 0 degrees, 90 degrees, 135 degrees, etc
  • A patented invention featuring a mixed structure of mechanical and hydraulic damping devices
NEW

玻璃鉸鏈

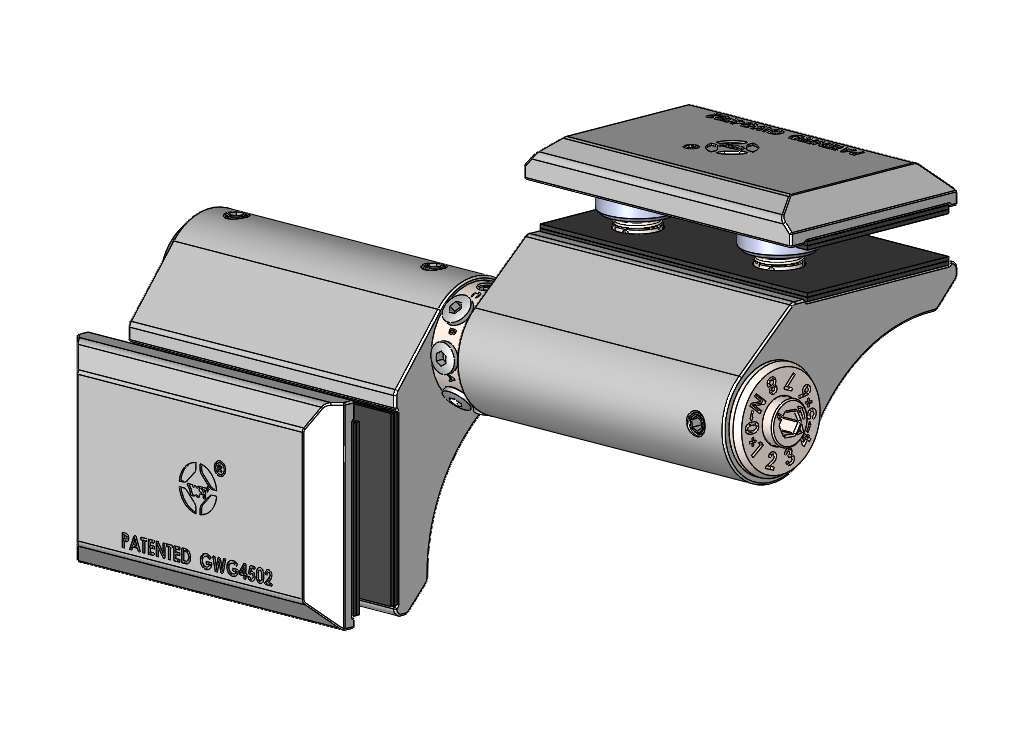

Wall to Glass Hinges ST45M + Glass Stand, ST45RBM+ Glass Stand and Glass to Glass Hinges GWG4501 STD4502

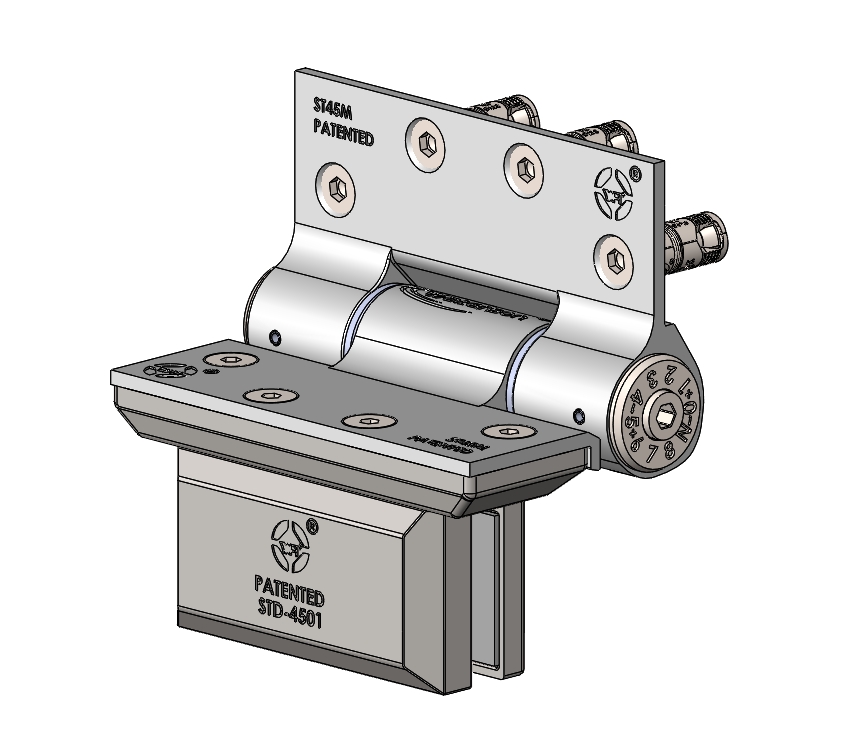

ST45M+Glass Stand
ST45RBM+Glass Stand
GWG4501
GWG4501

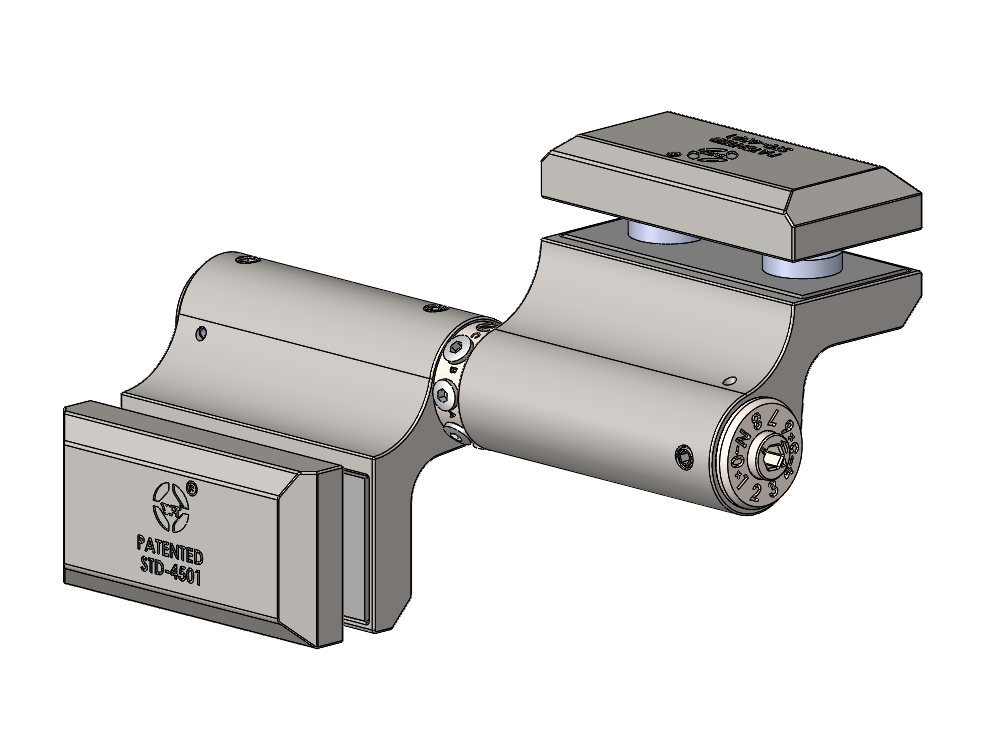

STD4502
STD4502
適用門種 / Suitable for Various Door Types：
玻璃門 Glass Doors 實木門 Solid Wood Doors 鋼木門 Steel-Wood Doors 玄關門 Entrance Doors 防火門 Fire Doors 防暴門 Anti-Violent Doors 不鏽鋼門 Stainless Steel Doors
產品特點 / Product Features：
特點：
  • 可以取代目前市場上傳統的不銹鋼天地鉸鏈、門弓器、油壓地鉸鏈、3D調整器等安裝簡捷快速安全,容易調整及設定
  • 採用專利Expansion Anchor 獨特結構設計取代傳統安裝方法
  • 只要會拿3mm及5mm六角板手都會安裝(不需要專業工程師或技術人員)
  • 可調式關門角度 0度,90度,135度等
  • 發明專利機械與油壓緩衝裝置混合式結構
Features：
  • It can replace traditional stainless steel floor hinges, door closers, hydraulic floor hinges, 3D adjusters, and other products currently available in the market, making installation simple, fast, safe, and easy to adjust and set
  • It uses a patented Expansion Anchor with a unique structural design that replaces traditional installation methods
  • Anyone who can use a 3mm or 5mm hex wrench can install it (there's no need for professional engineers or technicians)
  • Adjustable closing angles: 0 degrees, 90 degrees, 135 degrees, etc
  • A patented invention featuring a mixed structure of mechanical and hydraulic damping devices
NEW

不銹鋼、鋁合金鉸鏈組合 適用各種門型

ST45K / ST45KCELH
GWG4501
GWG4501 (鋁合金)
STD4502
STD4502
適用門種：
玻璃門 實木門 鋼木門 玄關門 防爆門 防火門 不銹鋼門
產品特點 / Product Features：
特點：
  • 不銹鋼材質經久耐用、依正三角形的重心、內心、外心為結構設計基礎
  • 取代傳統安裝及調整方法(不需要專業技工或資深工程師)
  • 只要會使用5mm六角板手就會安裝,快速安全方便
  • 自動尋位功能穩定高、咬合力強
  • 反覆拆裝容易取出更換位置
Features：
  • Made of durable stainless steel, designed based on the centroid, incenter, and circumcenter of an equilateral triangle structure
  • Replaces traditional installation and adjustment methods (no need for professional technicians or senior engineers)
  • Anyone who can use a 5mm hex wrench can install it quickly, safely, and conveniently
  • Features a stable automatic positioning function with strong gripping force
  • Easy to repeatedly disassemble and reassemble, allowing for easy removal and repositioning
NEW

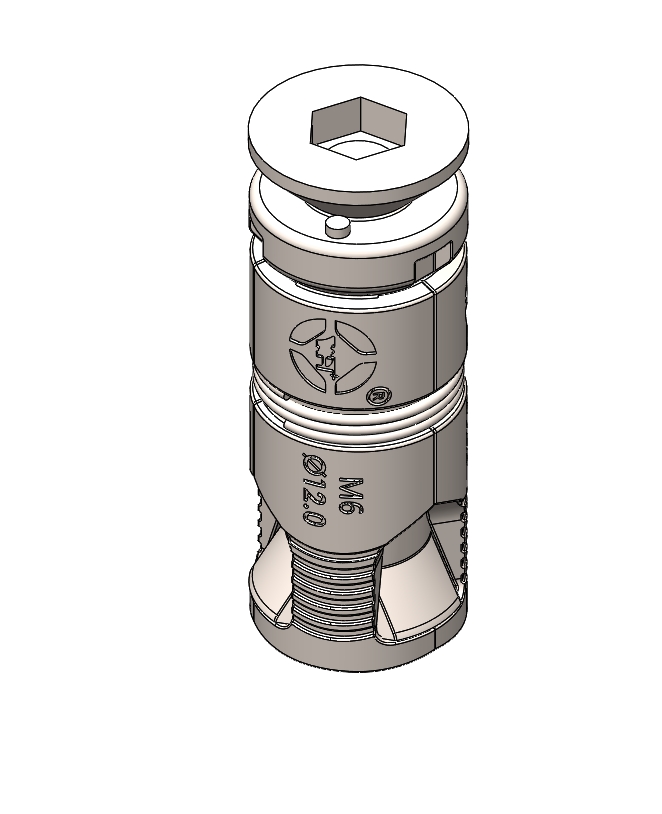

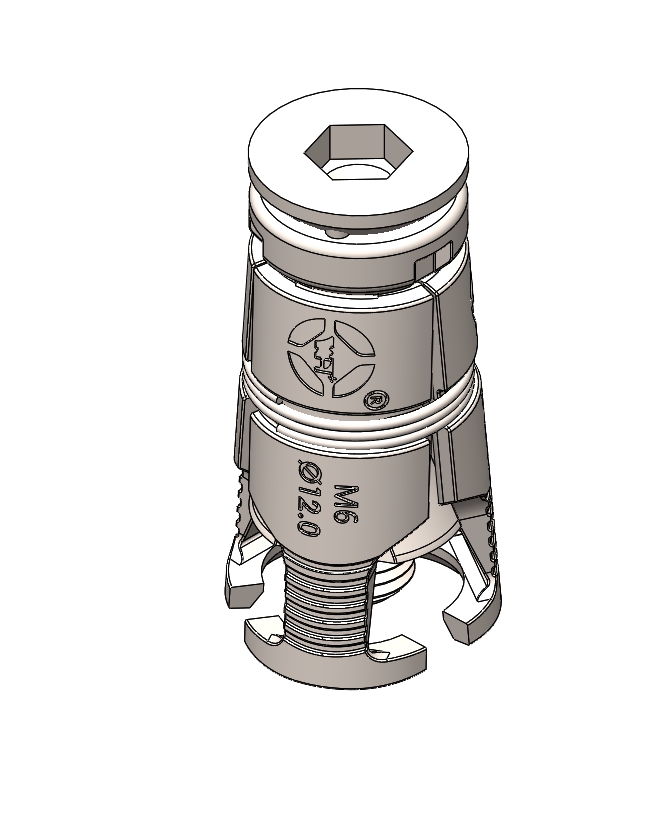

發明專利不銹鋼膨脹螺栓
New Patented Stainless Steel Expansion Anchor Made of durable stainless steel, designed based on the centroid, incenter, and circumcenter of an equilateral triangle structure. Replaces traditional installation and adjustment methods.

不鏽鋼膨脹螺栓
不鏽鋼膨脹螺栓 (鎖緊)
不鏽鋼膨脹螺栓
不鏽鋼膨脹螺栓 (打開)
產品特點 / Product Features：
特點：
  • 不銹鋼材質經久耐用、依正三角形的重心、內心、外心為結構設計基礎
  • 取代傳統安裝及調整方法(不需要專業技工或資深工程師)
  • 只要會使用5mm六角板手就會安裝,快速安全方便
  • 自動尋位功能穩定高、咬合力強
  • 反覆拆裝容易取出更換位置
Features：
  • Made of durable stainless steel, designed based on the centroid, incenter, and circumcenter of an equilateral triangle structure
  • Replaces traditional installation and adjustment methods (no need for professional technicians or senior engineers)
  • Anyone who can use a 5mm hex wrench can install it quickly, safely, and conveniently
  • Features a stable automatic positioning function with strong gripping force
  • Easy to repeatedly disassemble and reassemble, allowing for easy removal and repositioning
